Description
1. Video Input: 8 channels

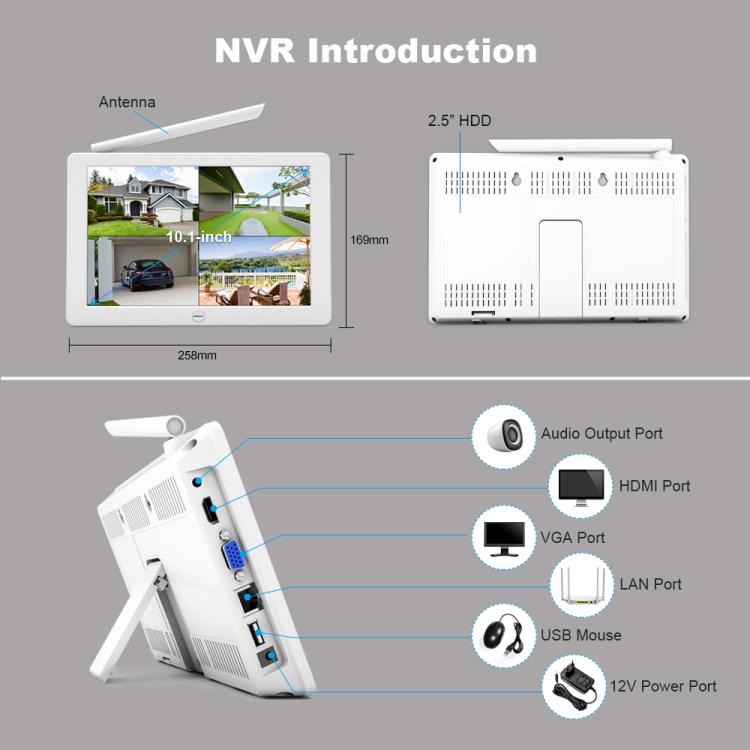

2. Video Output: 1 HDMI port, 1 VGA port
3. Compression Format: H.265/H.264/Smart264
4. Encoding Capacity: 8 channels of 2-megapixel video at 25 frames per second
5. Decoding Capacity: 1 channel of 5-megapixel video at 25 frames per second (main stream), 8 channels of D1 at 25 frames per second (auxiliary stream)
6. Decoding Format: H.265, H.264
7. Audio: Supports two-way audio, built-in microphone and speaker
8. Audio Output: HDMI and 1 AUX audio output, built-in speaker
9. Decoding Format: G.711U, AAC
10. Hard Drive Port: 1 x SATA port (2.5-inch hard drives only)
11. Hard Drive Capacity: Maximum supported: 16TB
12. Recording Modes: Scheduled recording, alarm recording
13. Playback Modes: Regular playback, app playback
14. Backup Mode: Standard Backup
15. WiFi: 2.4G, supports standard camera connections only
16. WAN Port: RJ45 wired connection
17. Network Services: Supports DHCP, DNS, DDNS, NTP, UPNP, etc.
18. Alarm Modes: Motion Detection, Human Detection
19. Alarm Alerts: App Push, Alarm Whistle
20. Network Port: RJ45
21. USB Port: 2 x USB 2.0

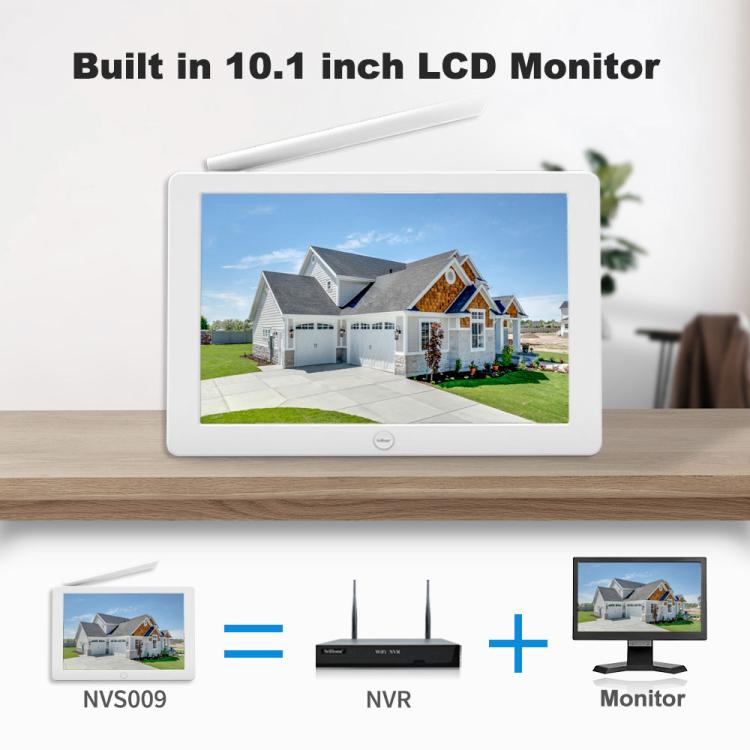

22. Screen Size: 10.1-inch LCD
23. Display Resolution: 800 x 1280
24. Main Processor: Multi-core high-speed processor

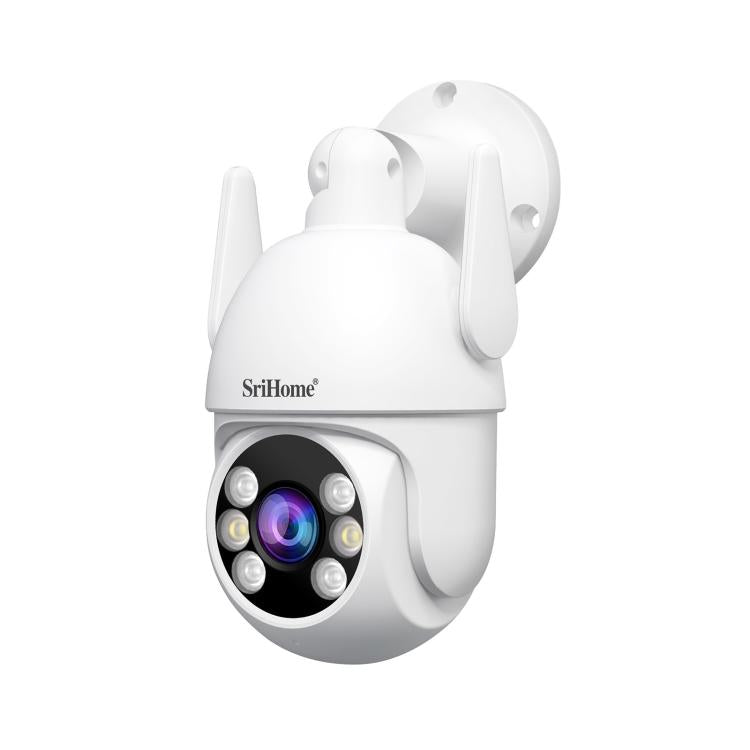

25. Sensor: 1/2.7-inch, 2MP high-definition color CMOS sensor
26. Compression Format: H.264
27. Lens Specifications: Focal Length: 4mm
28. Viewing Angle: D: 98 degrees, H: 80 degrees, V: 58 degrees

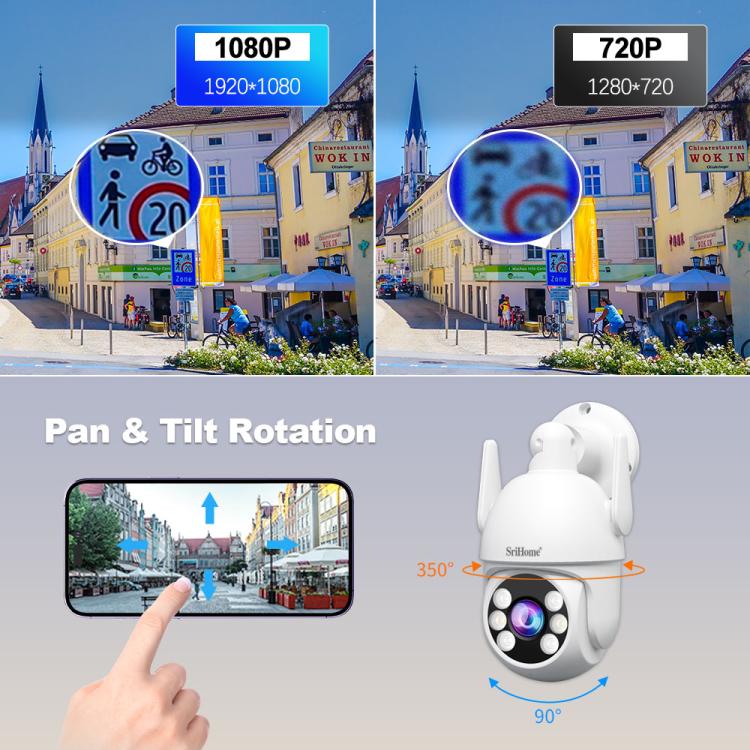

29. Resolution: 1080P (1920x1080), VGA (480x360)
30. Frame Rate: 15 FPS
31. IR Cutoff: Built-in IR cutoff, no color cast indoors or outdoors
32. Audio: Built-in microphone and speaker, supports two-way audio
33. Protocol: G711

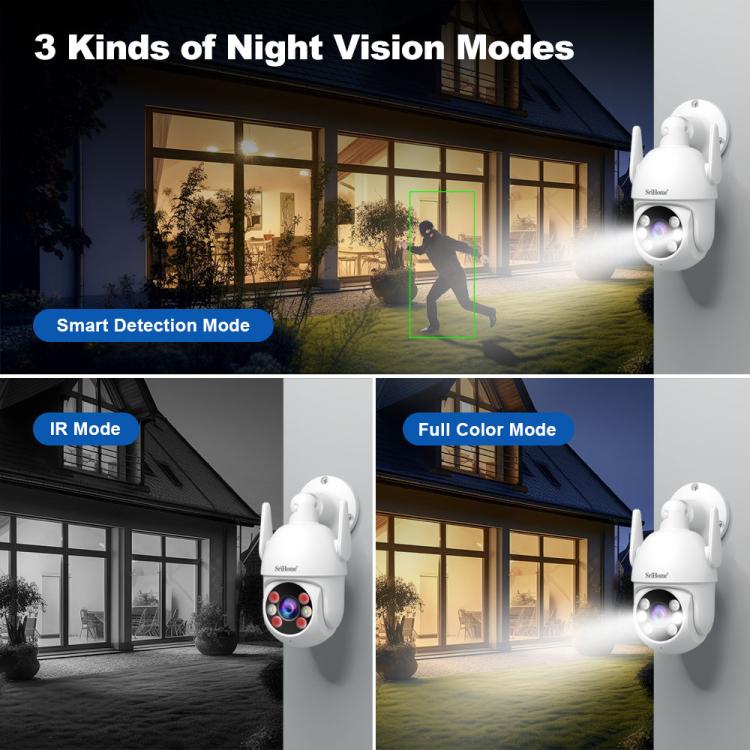

34. Alarm Mode: Default black and white night vision. When an alarm is detected, the white light turns on and switches to full-color night vision.
35. White Light Mode: Turns on full-color night vision with adjustable brightness. The on-time can be customized via the app. Default time: 5:00 PM to 8:00 AM.
36. Infrared Mode: Disables white light and switches to standard night vision.
37. Alarm Mode: Motion detection, human presence.
38. Customizable Alarm Zones: Customizable motion detection zones for improved alarm accuracy.
39. Wireless: 2.4G (connects to NVS011/NVS009 host only).
Functions:

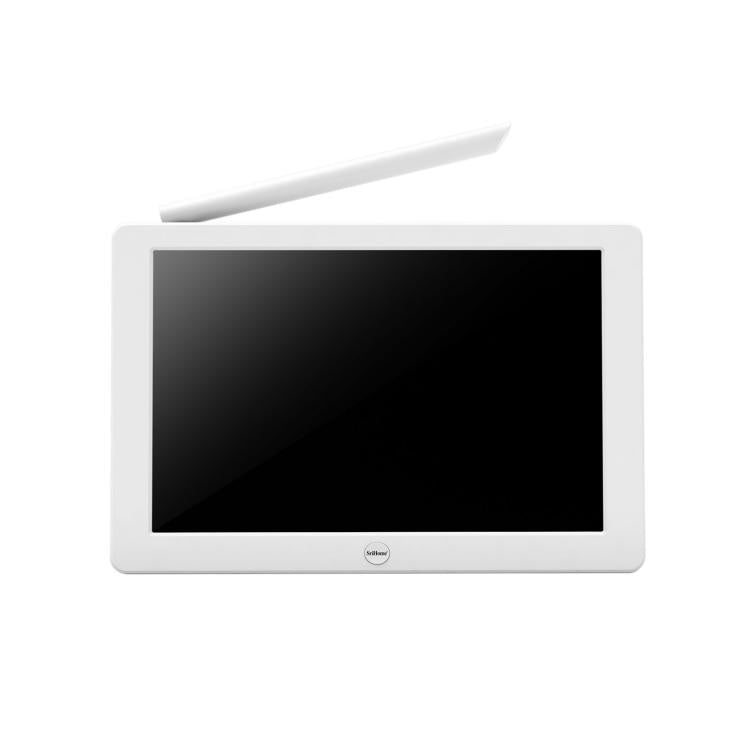

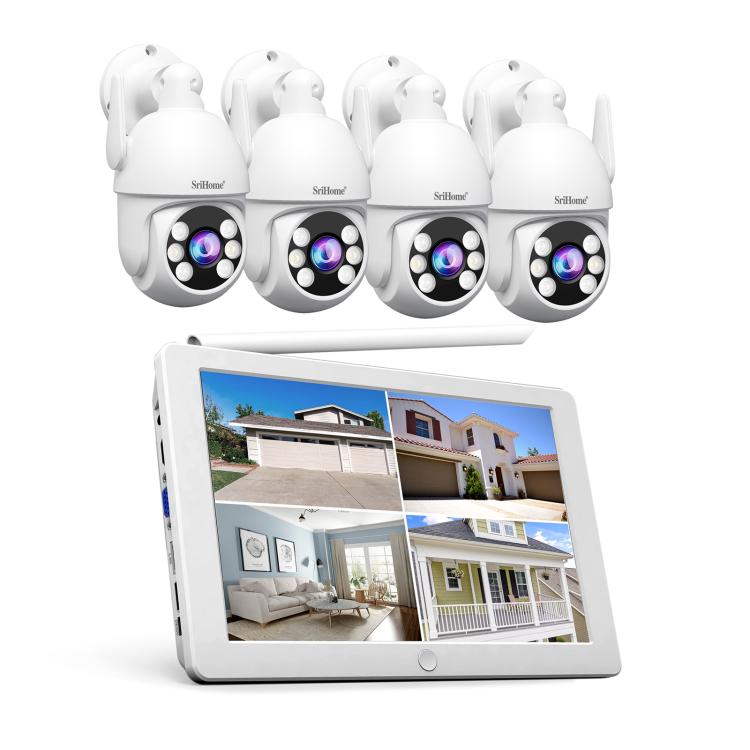

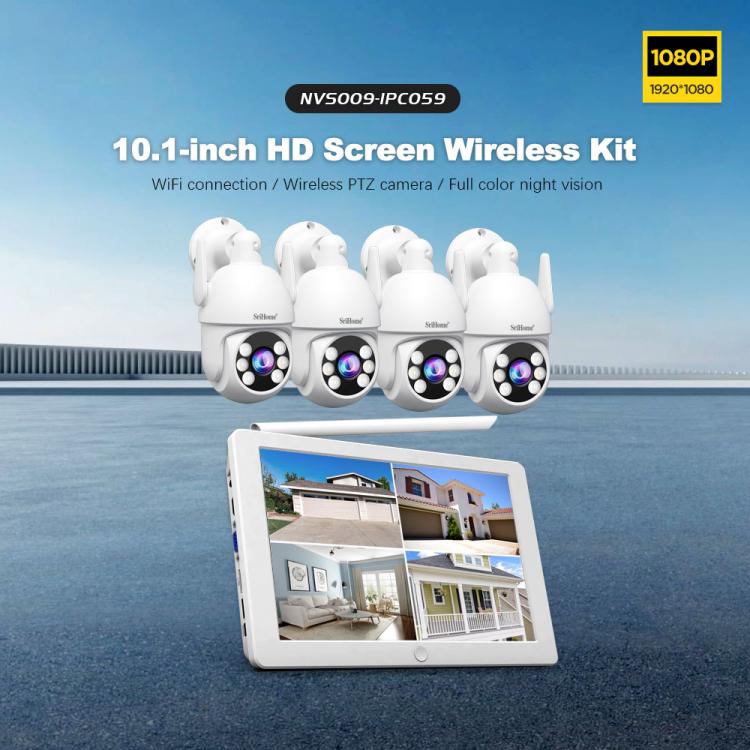

1. 1080P 4-channel wireless NVR kit with a built-in 10.1-inch LCD screen.
2. NVR supports up to 8 5MP wireless cameras.
3. Supports up to 16TB hard drive storage and playback.

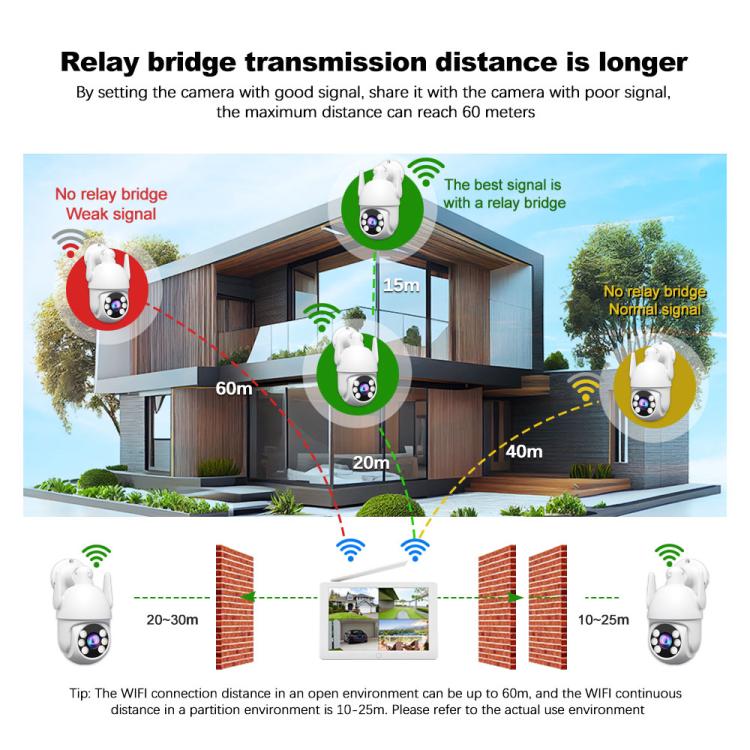

4. Supports wireless bridge mode with a WiFi range of up to 60 meters.
5. Supports H.265 compression format, with approximately 50 days of storage per 1TB.
6. Supports two-way voice intercom, infrared dual-light, and full-color night vision.
7. AI Intelligence: Supports human tracking (dome models) and siren alarm.
8. Supports mobile remote monitoring, intercom, and playback.

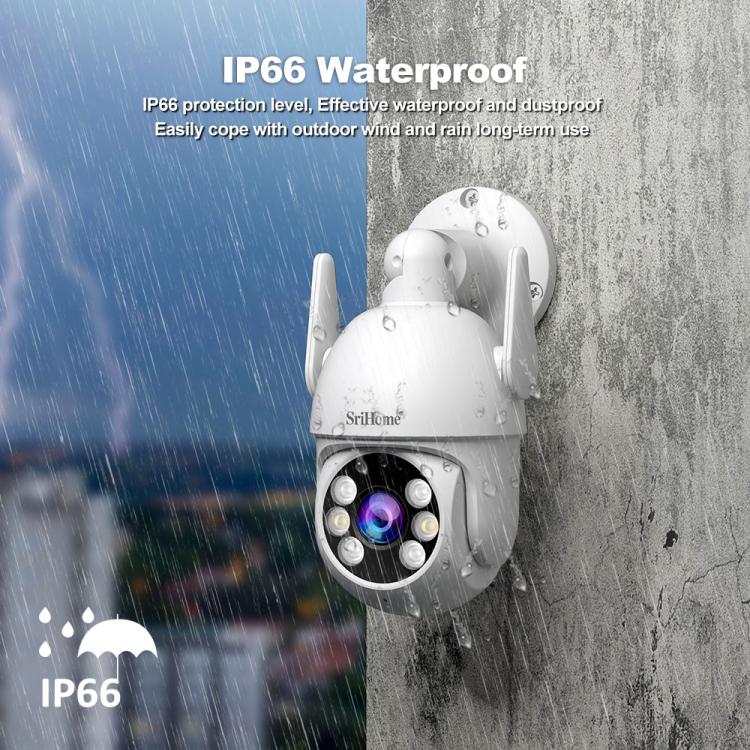

9. Waterproof IP66, suitable for indoor and outdoor use.
2. Video Output: 1 HDMI port, 1 VGA port
3. Compression Format: H.265/H.264/Smart264
4. Encoding Capacity: 8 channels of 2-megapixel video at 25 frames per second
5. Decoding Capacity: 1 channel of 5-megapixel video at 25 frames per second (main stream), 8 channels of D1 at 25 frames per second (auxiliary stream)
6. Decoding Format: H.265, H.264
7. Audio: Supports two-way audio, built-in microphone and speaker
8. Audio Output: HDMI and 1 AUX audio output, built-in speaker
9. Decoding Format: G.711U, AAC
10. Hard Drive Port: 1 x SATA port (2.5-inch hard drives only)
11. Hard Drive Capacity: Maximum supported: 16TB
12. Recording Modes: Scheduled recording, alarm recording
13. Playback Modes: Regular playback, app playback
14. Backup Mode: Standard Backup
15. WiFi: 2.4G, supports standard camera connections only
16. WAN Port: RJ45 wired connection
17. Network Services: Supports DHCP, DNS, DDNS, NTP, UPNP, etc.
18. Alarm Modes: Motion Detection, Human Detection
19. Alarm Alerts: App Push, Alarm Whistle
20. Network Port: RJ45
21. USB Port: 2 x USB 2.0
22. Screen Size: 10.1-inch LCD
23. Display Resolution: 800 x 1280
24. Main Processor: Multi-core high-speed processor
25. Sensor: 1/2.7-inch, 2MP high-definition color CMOS sensor
26. Compression Format: H.264
27. Lens Specifications: Focal Length: 4mm
28. Viewing Angle: D: 98 degrees, H: 80 degrees, V: 58 degrees
29. Resolution: 1080P (1920x1080), VGA (480x360)
30. Frame Rate: 15 FPS
31. IR Cutoff: Built-in IR cutoff, no color cast indoors or outdoors
32. Audio: Built-in microphone and speaker, supports two-way audio
33. Protocol: G711
34. Alarm Mode: Default black and white night vision. When an alarm is detected, the white light turns on and switches to full-color night vision.
35. White Light Mode: Turns on full-color night vision with adjustable brightness. The on-time can be customized via the app. Default time: 5:00 PM to 8:00 AM.
36. Infrared Mode: Disables white light and switches to standard night vision.
37. Alarm Mode: Motion detection, human presence.
38. Customizable Alarm Zones: Customizable motion detection zones for improved alarm accuracy.
39. Wireless: 2.4G (connects to NVS011/NVS009 host only).
Functions:
1. 1080P 4-channel wireless NVR kit with a built-in 10.1-inch LCD screen.
2. NVR supports up to 8 5MP wireless cameras.
3. Supports up to 16TB hard drive storage and playback.
4. Supports wireless bridge mode with a WiFi range of up to 60 meters.
5. Supports H.265 compression format, with approximately 50 days of storage per 1TB.
6. Supports two-way voice intercom, infrared dual-light, and full-color night vision.
7. AI Intelligence: Supports human tracking (dome models) and siren alarm.
8. Supports mobile remote monitoring, intercom, and playback.
9. Waterproof IP66, suitable for indoor and outdoor use.
