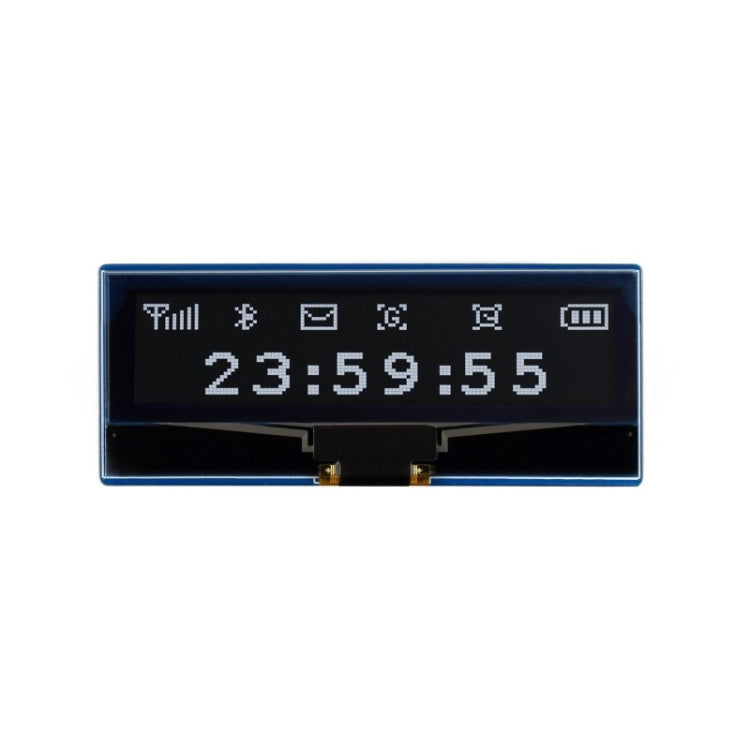

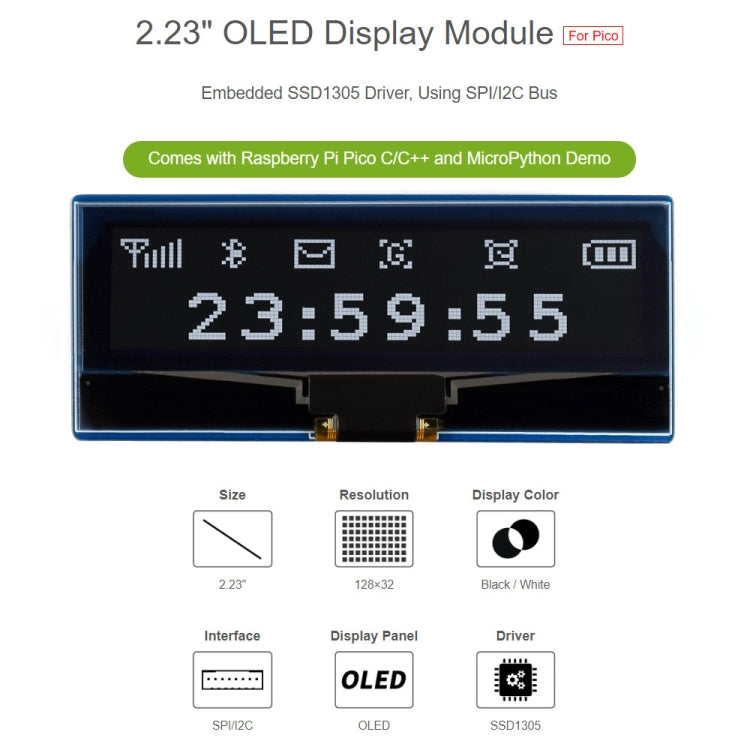

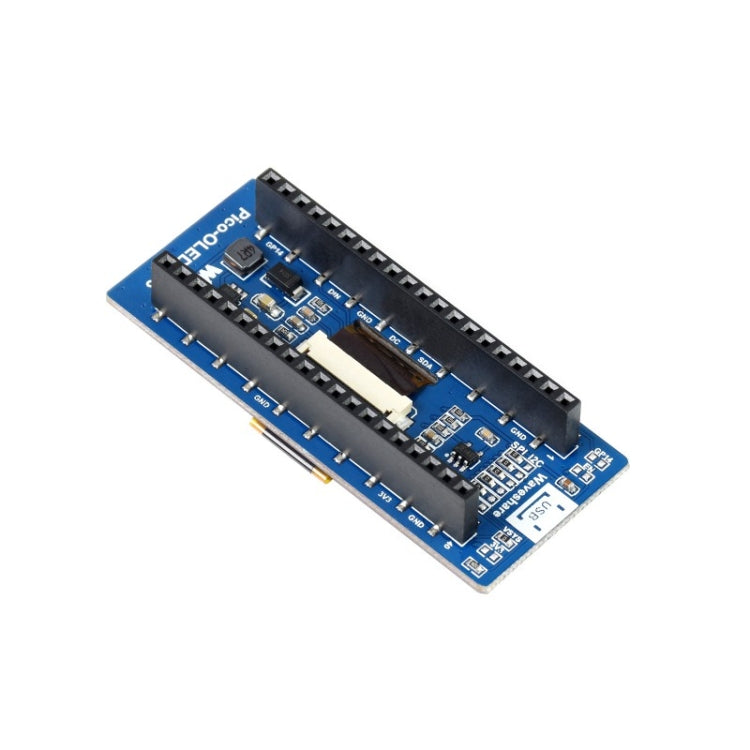

WAVESHARE 128 x 32 Pixel 2.23 inch OLED Display Module for Raspberry Pi Pico, SPI/I2C

Name: WAVESHARE 128 x 32 Pixel 2.23 inch OLED Display Module for Raspberry Pi Pico, SPI/I2C
Brand: Astra
SKU: DIY0210
Price: 29.33 USD
Availability: InStock

$29.33 USD

Udsalg Udsolgt

Inklusive skat. Levering beregnes ved betaling.

Produktvarianter

Antal

1. Adopts both 4-wire SPI and I2C interface, better compatibility, fast data rate

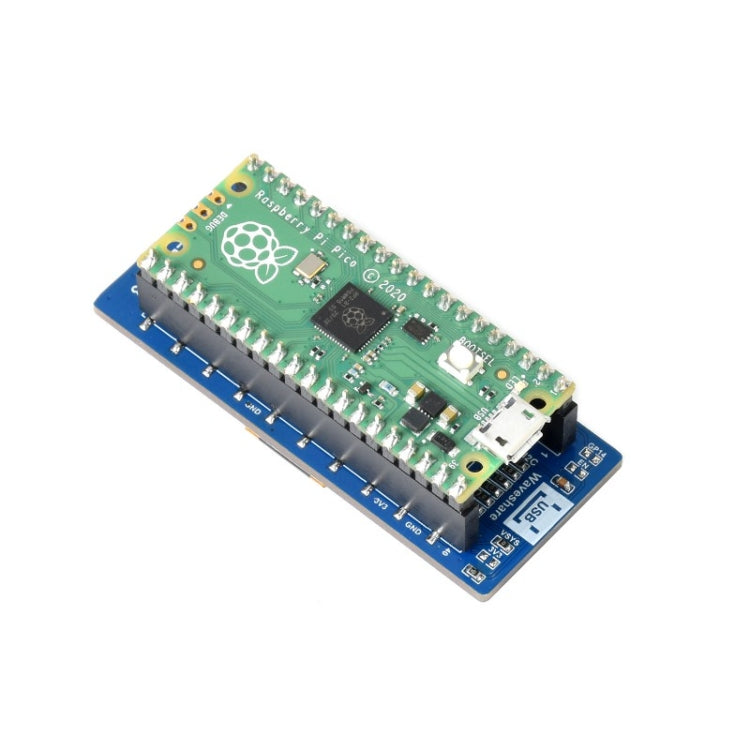

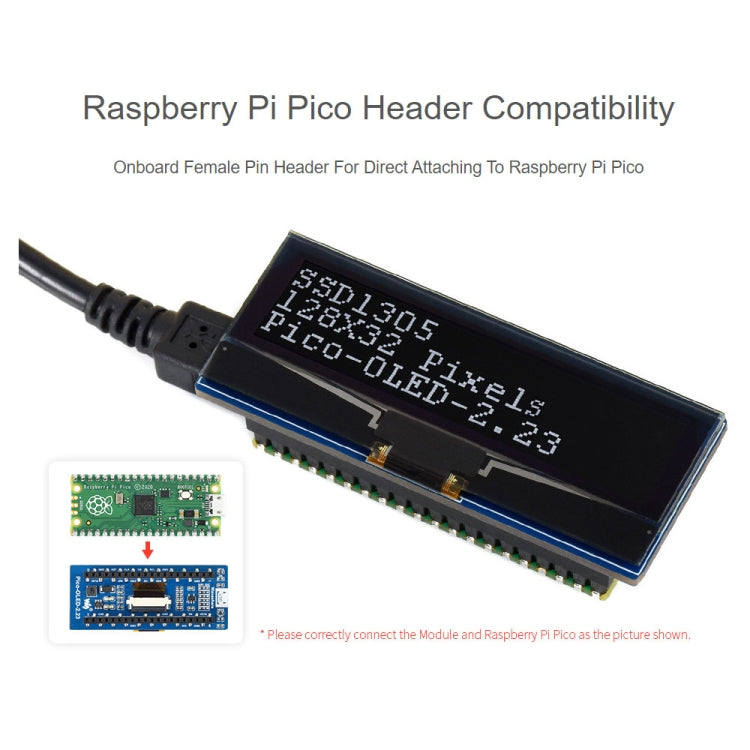

2. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
3. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

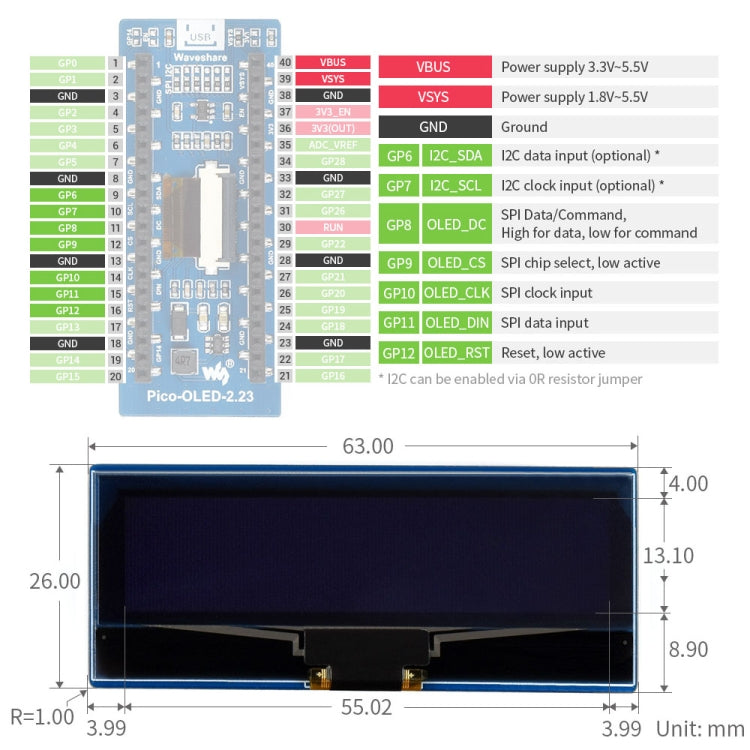

Specification
1. Operating voltage: 3.3V / 5V, Logic voltage: 3.3V
2. Resolution: 128x32 pixels
3. Viewing angle: Greater than 160 degree
4. Communication interface: 4-wire SPI, I2C
5. Display panel: OLED
6. Display size: 55.02 x 13.10mm
7. Pixel size: 0.41 x 0.39mm
8. Driver: SSD1305
9. Size: 52.00 x 25.00mm

Specification:

Package Weight

One Package Weight

0.03kgs / 0.06lb

One Package Size

15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch

Qty per Carton

300

Carton Weight

7.00kgs / 15.43lb

Carton Size

42cm * 33cm * 26cm / 16.54inch * 12.99inch * 10.24inch
