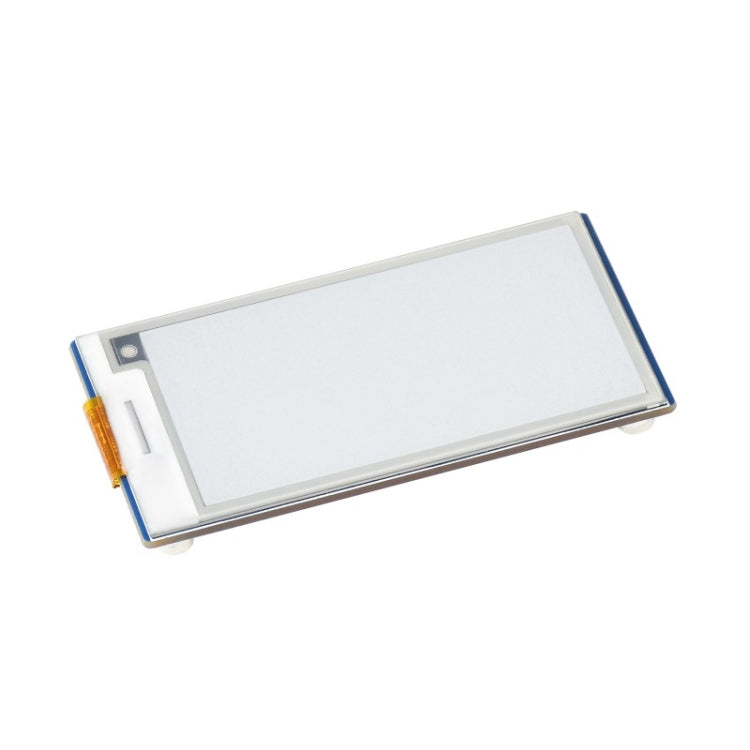

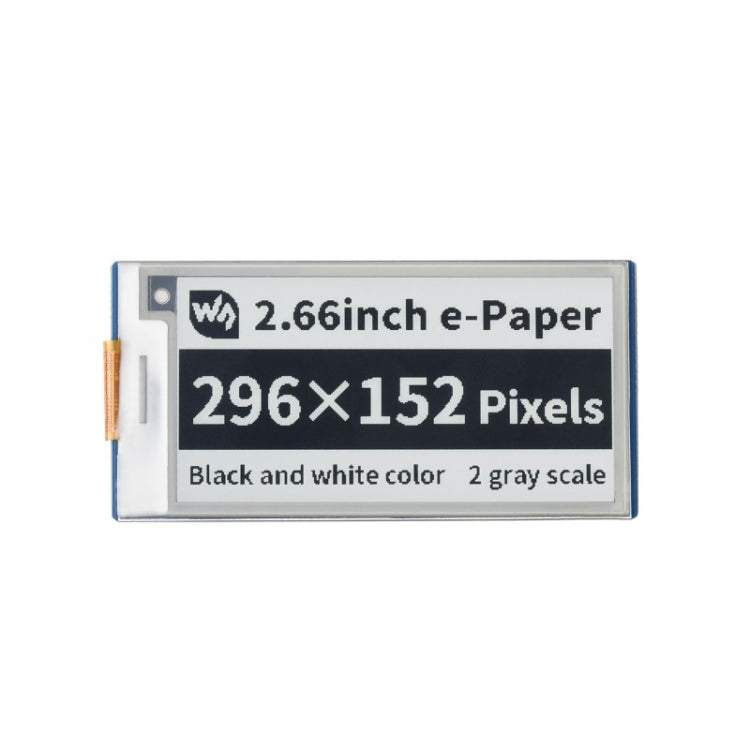

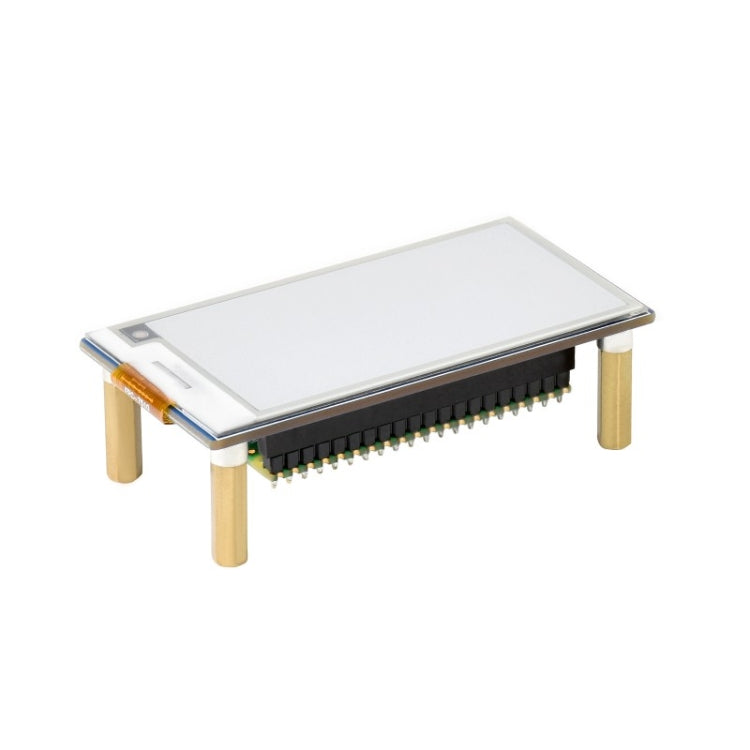

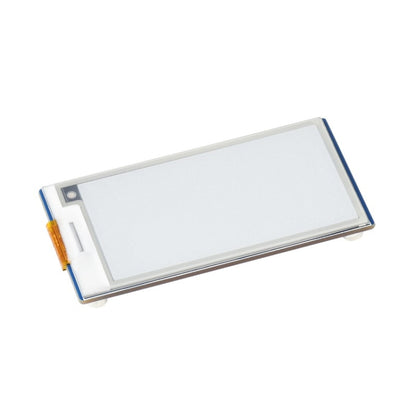

Waveshare 2.66 inch 296 x 152 Pixel Black / White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface

Waveshare 2.66 inch 296 x 152 Pixel Black / White E-Paper E-Ink Display Module for Raspberry Pi Pico, SPI Interface

Normalpris $32.46 USD
Normalpris Udsalgspris $32.46 USD
Udsalg Udsolgt
Inklusive skat. Levering beregnes ved betaling.
Features
1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. SPI interface, requires minimal IO pins
4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

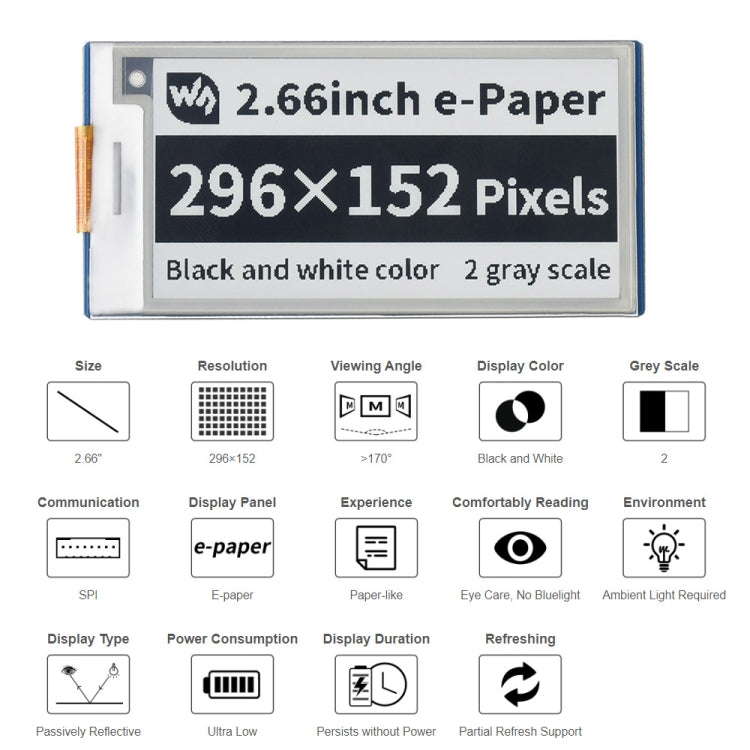

Specification
1. Operating voltage: 3.3V
2. Display color: Black, white
3. Resolution: 296 x 152 pixels
4. Grey scale: 2
5. Interface: 3-wire SPI, 4-wire SPI
6. Viewing angle: Greater than 170 degree
7. Partial refresh time: 0.3s
8. Full refresh time: 2s
9. Dimensions: 74.00 x 37.50mm
10. Display size: 60.088 x 30.704mm
11. Refresh power: 42.4mW(typ.)
12. Standby current: Less than 0.01uA (almost none)
13. Dot pitch: 0.203 x 0.202mm

Package List
1. Pico-ePaper-2.66 x1
2. Standoff pack x1


Specification:
Package Weight
One Package Weight 0.05kgs / 0.11lb
One Package Size 15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch
Qty per Carton 200
Carton Weight 9.00kgs / 19.84lb
Carton Size 42cm * 26cm * 26cm / 16.54inch * 10.24inch * 10.24inch
Loading Container 20GP: 939 cartons * 200 pcs = 187800 pcs
40HQ: 2180 cartons * 200 pcs = 436000 pcs
