Waveshare 2-Channel RS485 Module for Raspberry Pi Pico, SP3485 Transceiver, UART To RS485

Name: Waveshare 2-Channel RS485 Module for Raspberry Pi Pico, SP3485 Transceiver, UART To RS485
Brand: Astra
SKU: DIY0171
Price: 22.01 USD
Availability: InStock

$22.01 USD

Udsalg Udsolgt

Inklusive skat. Levering beregnes ved betaling.

Produktvarianter

Antal

Features:

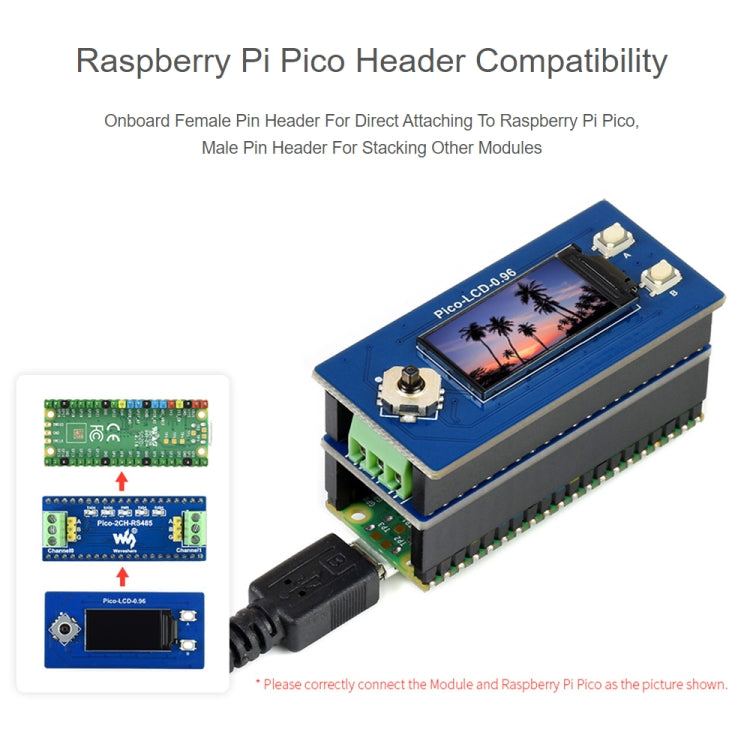

1. Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series
2. Using UART bus, easily converting UART to RS485, or vice versa
3. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications:
1. Operating voltage: 3.3V
2. RS485 Transceiver: SP3485
3. Communication BUS: UART
4. Baudrate: 300~500000bps

Package list:
Pico-2CH-RS485 x1

Specification:

Package Weight

One Package Weight

0.04kgs / 0.08lb

One Package Size

15cm * 12cm * 2cm / 5.91inch * 4.72inch * 0.79inch

Qty per Carton

200

Carton Weight

5.00kgs / 11.02lb

Carton Size

32cm * 22cm * 22cm / 12.6inch * 8.66inch * 8.66inch
