WAVESHARE 65K Colors 160 x 80 Pixel 0.96 inch LCD Display Module for Raspberry Pi Pico, SPI
WAVESHARE 65K Colors 160 x 80 Pixel 0.96 inch LCD Display Module for Raspberry Pi Pico, SPI
Normalpris
$22.84 USD
Normalpris
Udsalgspris
$22.84 USD
Stykpris
/
pr.
Inklusive skat.
Levering beregnes ved betaling.
Tilgængelighed for afhentning kunne ikke indlæses

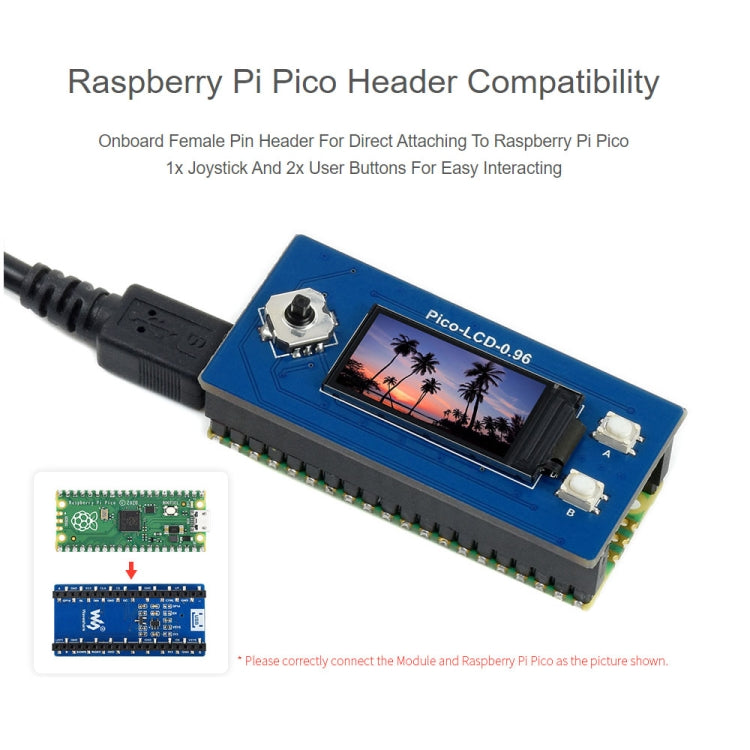

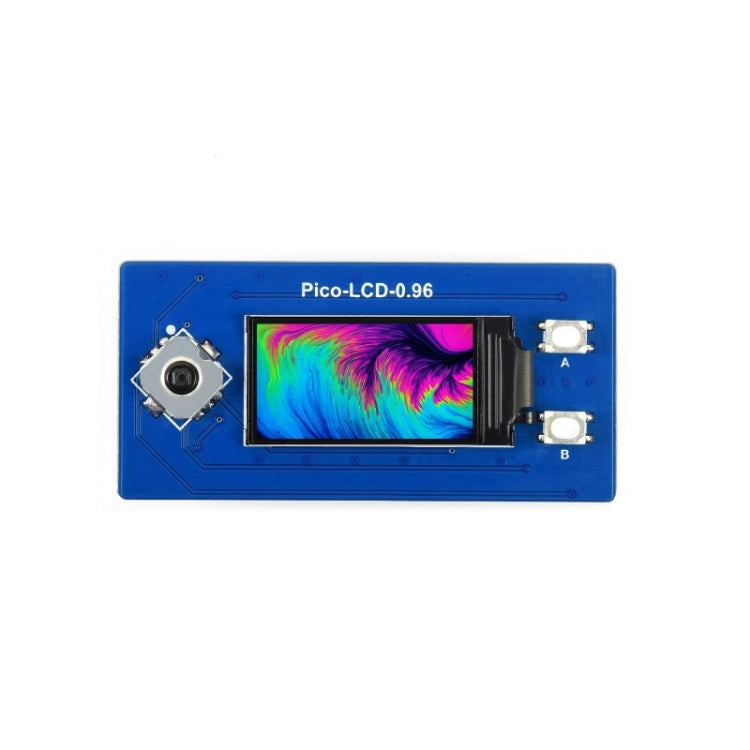

1. 160x80 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
2. SPI interface, requires minimal IO pins
3. 1x joystick and 2x user buttons for easy interacting
4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

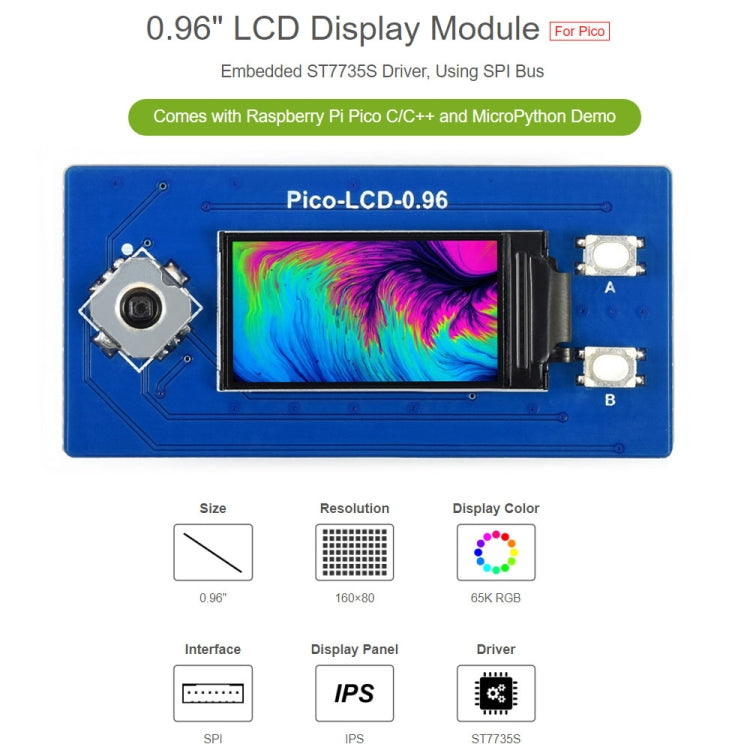

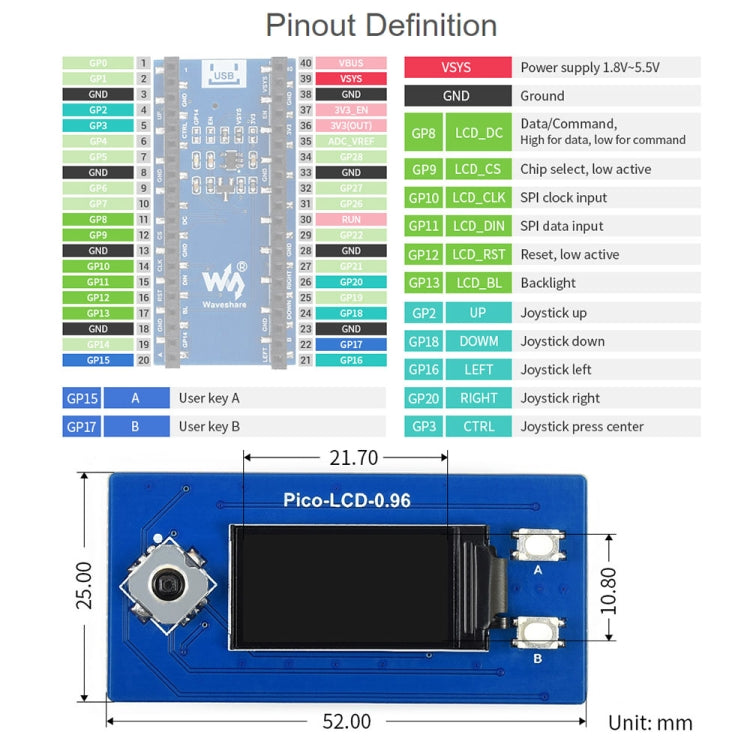

Specification
1. Operating voltage: 2.6 ~ 5.5V
2. Resolution: 160x80 pixels
3. Display color: 65K RGB
4. Communication interface: 4-wire SPI
5. Display panel: IPS
6. Display size: 21.70 x 10.80mm
7. Pixel size: 0.1356 x 0.135mm
8. Driver: ST7735S
9. Size: 52.00 x 25.00mm
2. SPI interface, requires minimal IO pins
3. 1x joystick and 2x user buttons for easy interacting
4. Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specification
1. Operating voltage: 2.6 ~ 5.5V
2. Resolution: 160x80 pixels
3. Display color: 65K RGB
4. Communication interface: 4-wire SPI
5. Display panel: IPS
6. Display size: 21.70 x 10.80mm
7. Pixel size: 0.1356 x 0.135mm
8. Driver: ST7735S
9. Size: 52.00 x 25.00mm
Specification:
| Package Weight |
|
