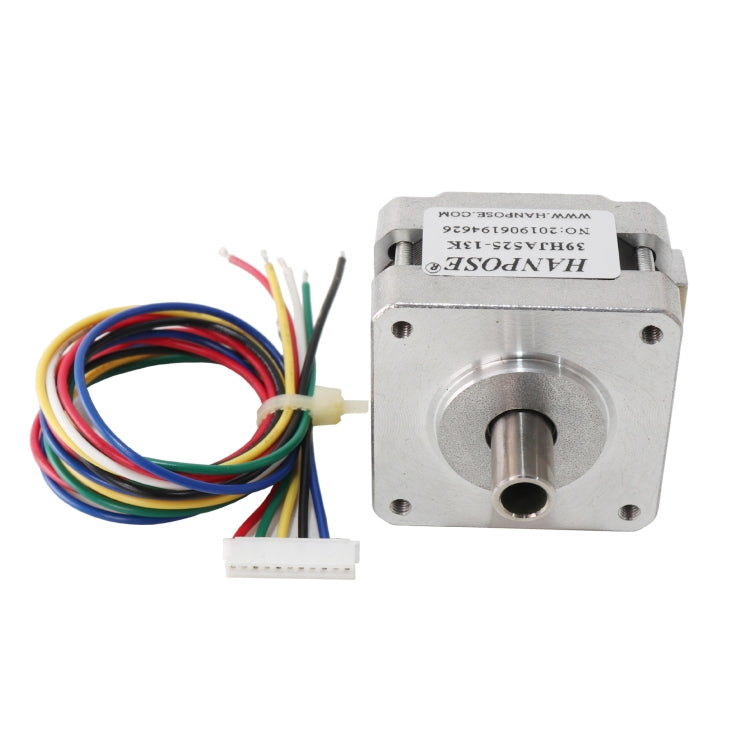

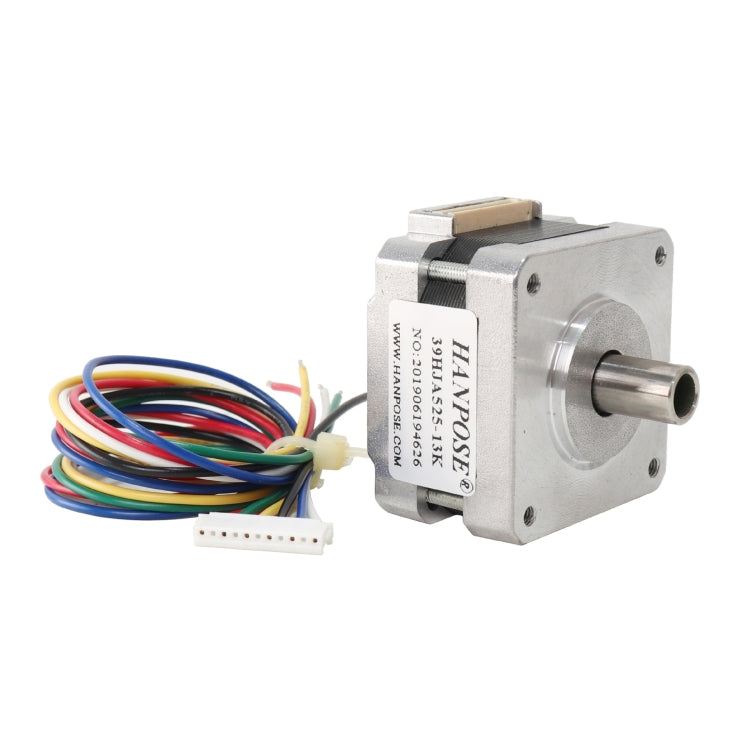

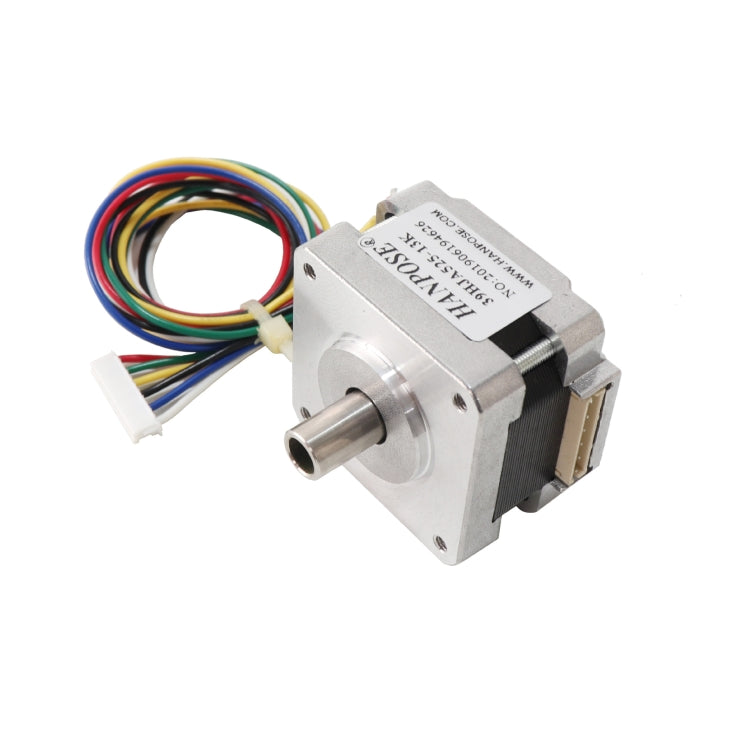

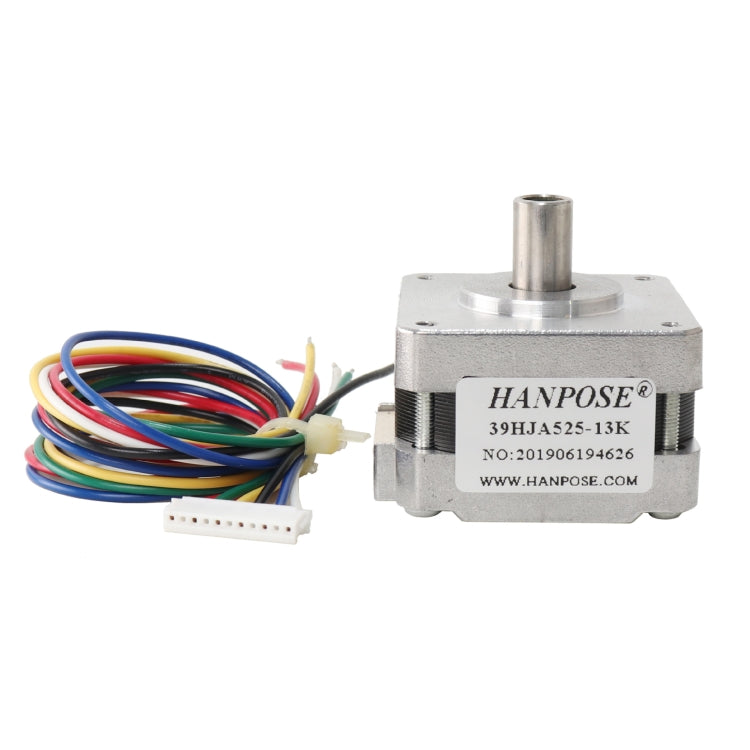

HANPOSE 39HGA525-13K 0.8A 0.2NM Induction Light Stepper Motor

Name: HANPOSE 39HGA525-13K 0.8A 0.2NM Induction Light Stepper Motor
Brand: Astra
SKU: TBD06040816
Price: 20.01 USD
Availability: InStock

$20.01 USD

Oferta Agotado

Impuesto incluido. Los gastos de envío se calculan en la pantalla de pago.

Variantes de producto

Cantidad

1. Step accuracy: +5% (full step, no load)
2. Step angle: 1.8 degrees
3. Temperature rise: 80 degrees Celsius Max
4. Ambient temperature: -20--+50 degrees Celsius
5. Insulation resistance: 100M Ω min. 500VDC
6. Withstand voltage: 500VAC for 1 minute
7. Radial clearance: 0.06 Max. (450g-load)
8. Axial clearance: 0.08 max. (450g-load)
9. Radial pressure MAX: 28N (20mm From the flange)
10. Axial pressure MAX: 10N

Specification:

Package Weight

One Package Weight

0.14kgs / 0.32lb

One Package Size

10cm * 8cm * 7cm / 3.94inch * 3.15inch * 2.76inch

Qty per Carton

Carton Weight

9.50kgs / 20.94lb

Carton Size

32cm * 34cm * 37cm / 12.6inch * 13.39inch * 14.57inch

Loading Container
