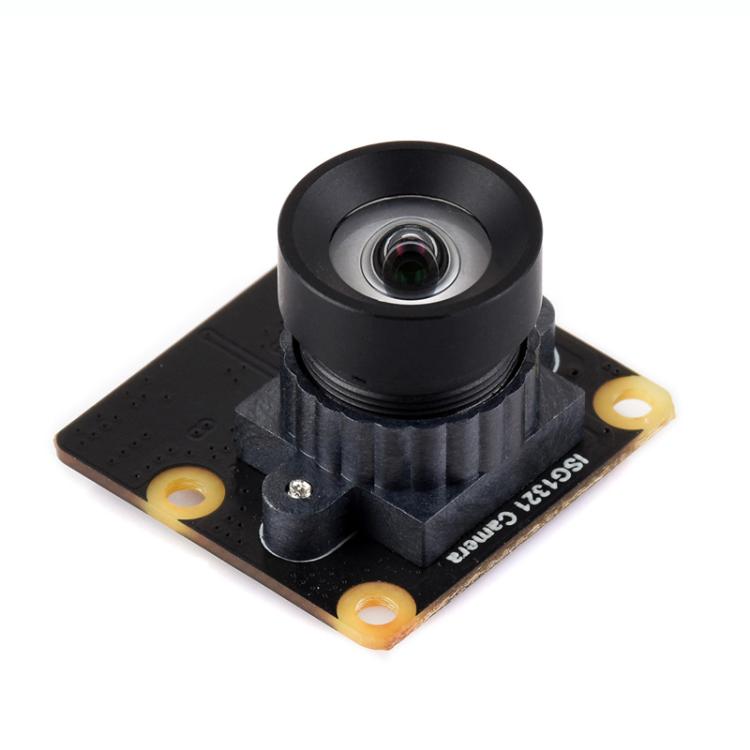

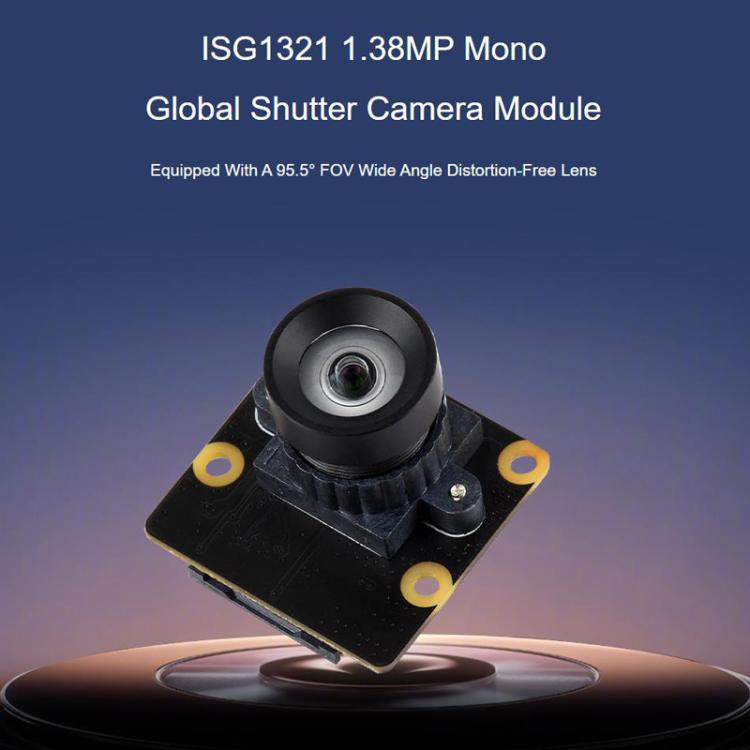

WAVESHARE ISG1321 1.38 MP B/W Global Shutter Camera Module 95.5 Degree Wide Angle Support 1280×1080 120fps

WAVESHARE ISG1321 1.38 MP B/W Global Shutter Camera Module 95.5 Degree Wide Angle Support 1280×1080 120fps

Regular price $45.45 USD
Regular price Sale price $45.45 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

1. Photochip: ISG1321
2. CMOS size: 1/4 inch
3. Camera type: black and white
4. Pixel: 1.38 million (1280 x 1080)
5. Shutter mode: global shutter
6. Output frame rate: up to 120 FPS

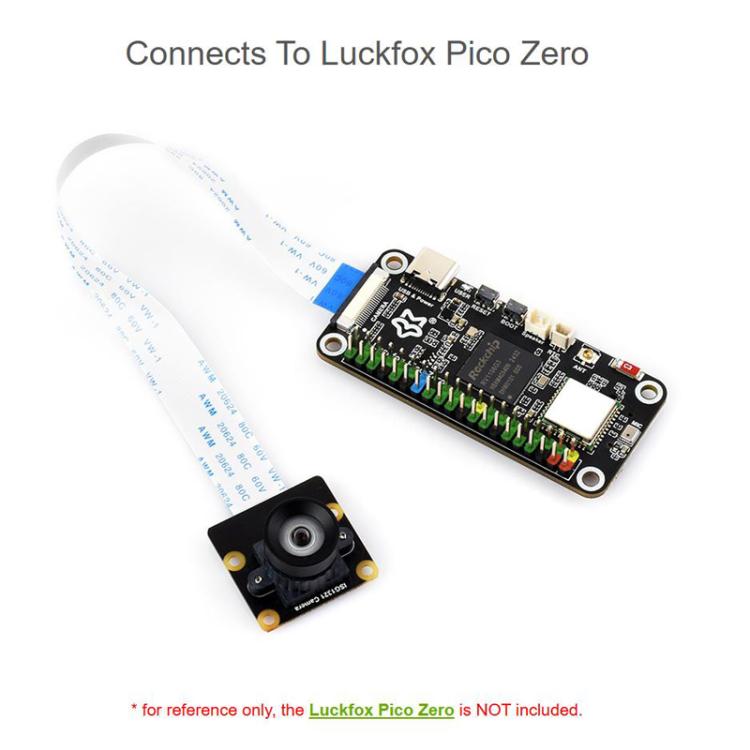

7. Interface: MIPI-CSI (2-lane)
8. Aperture: F2.4
9. Aberration: less than 1%
10. Field of view: 95.5 degrees
11. Focal length: 2.88mm
12. Focus mode: manual focus
13. Application scenarios: machine vision, logistics reading and industrial inspection

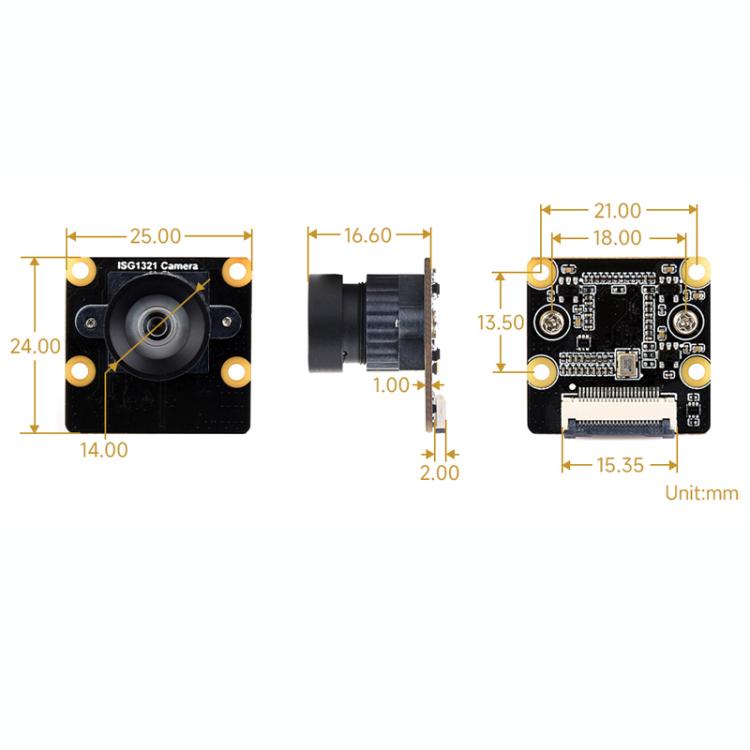

14. Size: about 2.5 x 2.4 x 1.66cm

Features. 1:

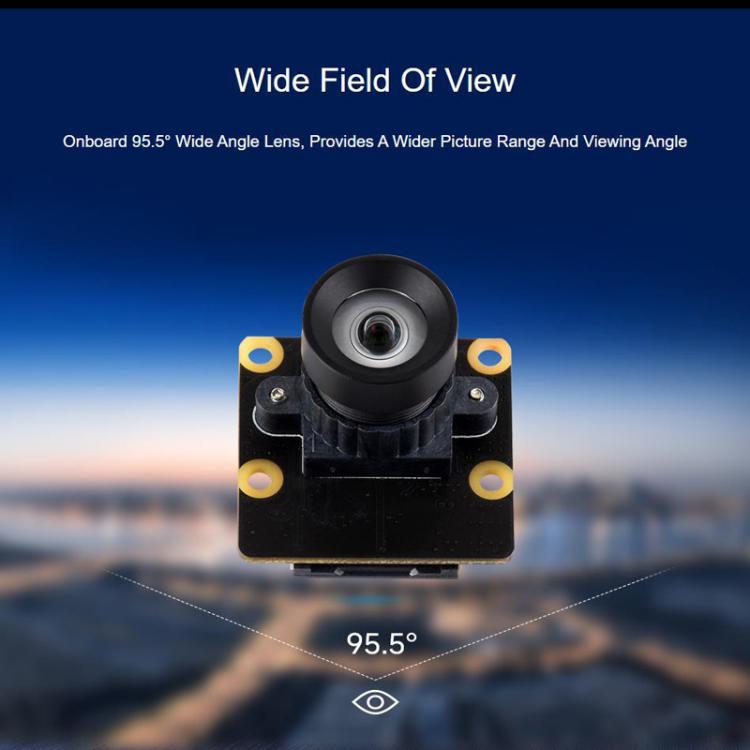

1. Equipped with 95.5 degree wide-angle lens, presenting a wider range of images, no longer limited to a narrow viewing angle
2. Global shutter, all pixels are exposed at the same time, the captured image is not easy to produce distortion.
3. Support up to 1280 x 1080 120fps, accurately capture fast-moving objects
Specification:
Package Weight
One Package Weight 0.03kgs / 0.07lb
One Package Size 6cm * 6cm * 3cm / 2.36inch * 2.36inch * 1.18inch
Qty per Carton 520
Carton Weight 16.60kgs / 36.60lb
Carton Size 50cm * 38cm * 35cm / 19.69inch * 14.96inch * 13.78inch
Loading Container 20GP: 401 cartons * 520 pcs = 208520 pcs
40HQ: 930 cartons * 520 pcs = 483600 pcs
